Kristiansen Kayak at Kullorsuaq 1995
Frame last used in 1963
Gail Ferris
gaileferris@hotmail.com
www.nkhorizons.com/KristiansenKayak.htm
www.nkhorizons.com/index.htm
|
|

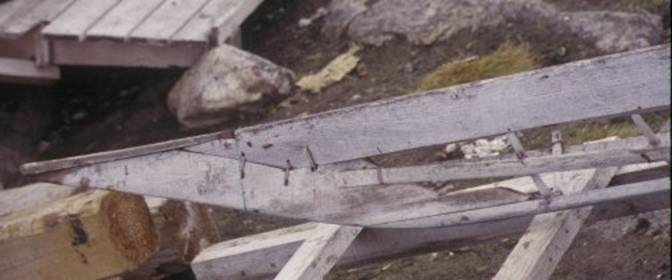

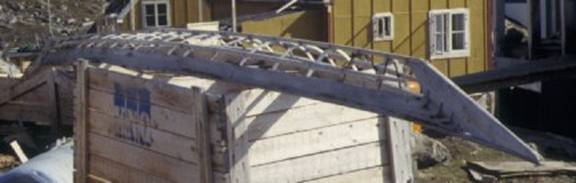

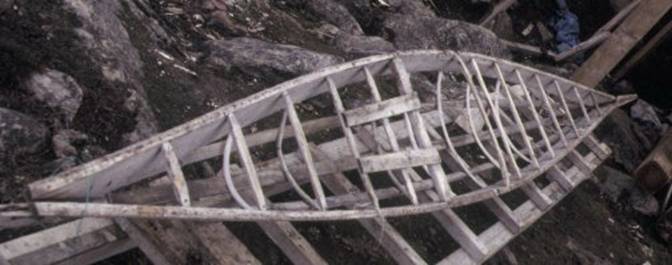

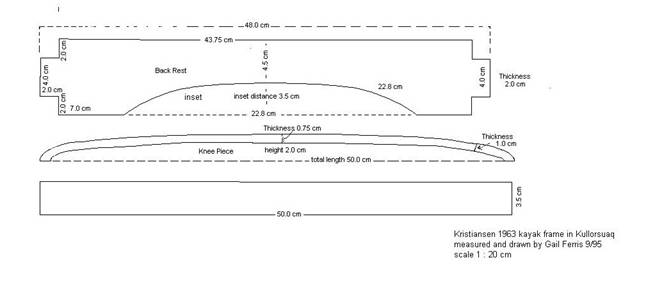

05 Kullorsuaq 1963 Christiansen kayak frame
used in 1963
|
|

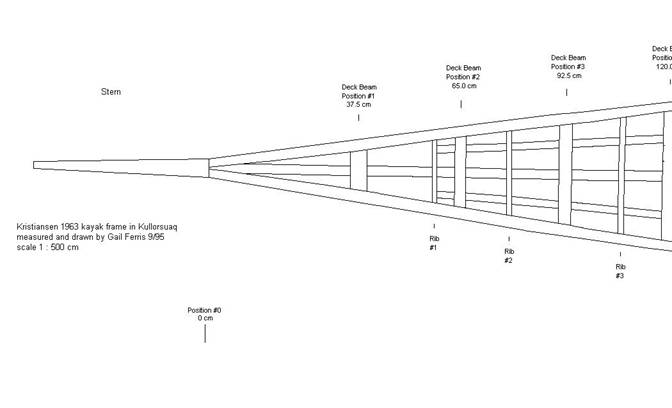

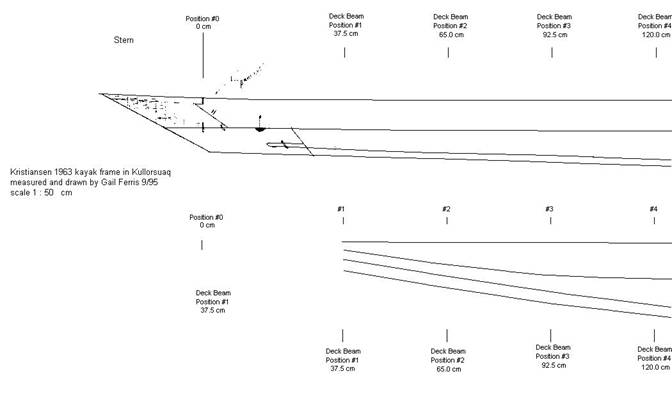

stern deck view positions #0/1/2/3/4
|
|
stern side view position #0/1/2/3/4
|
|

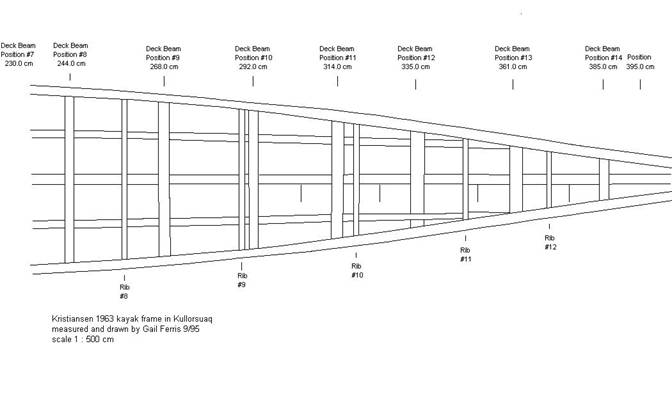

bow deck view beam position
#7/8/9/10/11/12/13/14
|
|

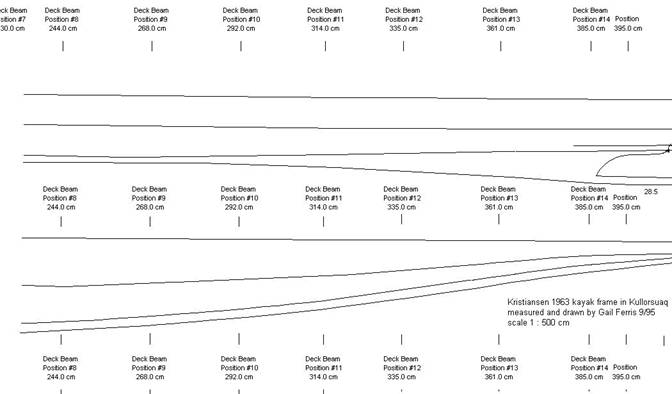

bow deck beam stern position #14/15/16
|
|

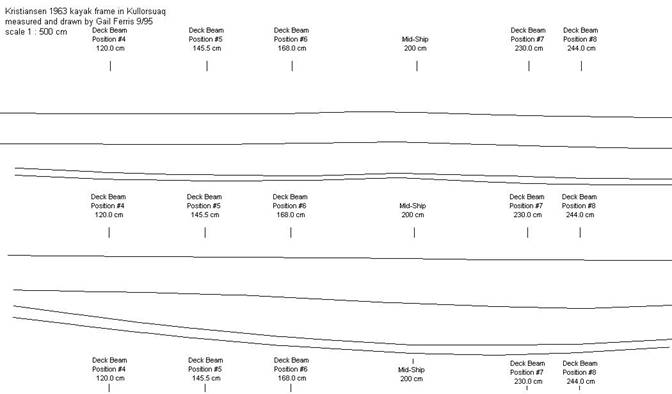

side deck beam starting from stern position
#4/5/6/midship/7/8
|
|

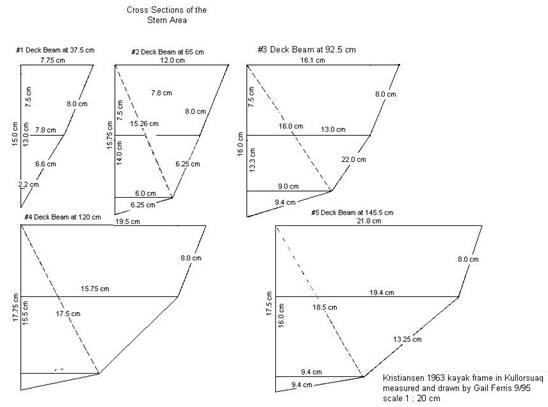

side xsections starting with stern #1 - 5
|
|
vertical side chine measurements heading
toward bow positions 8 - 14
|
|

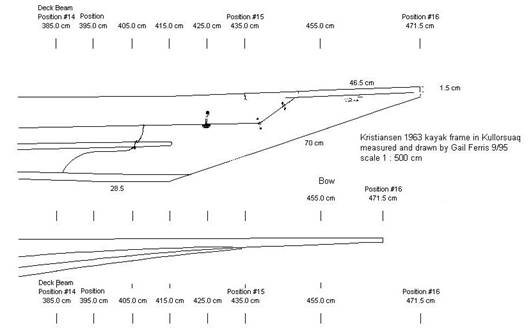

Bow side view parts drawn and dimensions
|
|
side view bow detail of structure unique to
Kullorsuaq
|
|
xsection views 7 & 8
|
|
xsection views 9 & 10
|
|
|
|

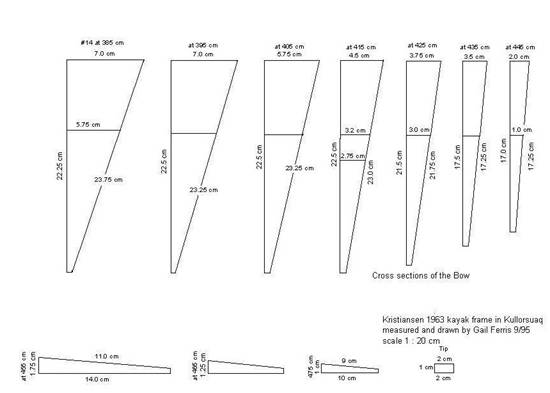

detailed bow xsections which do not reflect
what might have been a hollow bow as the Jensen kayaks have area 14 to the
bow tip
|
|
xsection of #6 and 200cm mid section
|
|
xsection of position #11 and 12
|
|
xsection of #13 and 14
|
|
|
|
Actual
dimensions taken of Deck Beams from intersection on the Keel:
|
Position
in cm
1st
group
|
Beam #1 @ 37.5 cm
|
Beam #2 @ 65 cm
|
Beam #3 @ 92.5 cm
|
Beam #4 @ 120 cm
|
Beam #5 @ 145.5cm
|
|
width
|
7.75
|
12
|
16.1
|
19.5
|
21.8
|
|
Center to
|
13
|
13.75
|
14
|
15.75
|
15.5
|
|
Bottom thickness
|
2
|
2.00
|
2.0
|
2
|
2.0
|
|
keel
|
15
|
15.25
|
16
|
17.25
|
17.5
|
|
Position
in cm
1st
group
|
Beam #6 @ 168 cm
|
Midship @ 200 cm
|
Beam #7 @ 230 cm
|
Beam #8 @ 244 cm
|
Beam #9 @ 268 cm
|
|
width
|
23.5
|
25.0
|
25.25
|
24.5
|
23
|
|
Center to
|
15.5
|
15.5
|
16.0
|
15.5
|
15.5
|
|
Bottom thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
17.5
|
17.5
|
18.0
|
17.5
|
17.5
|
|
Position
in cm
1st
group
|
Beam
#10 @ 292 cm
|
Beam
#11 @ 314 cm
|
Beam
#12 @ 335 cm
|
Beam
#13 @ 361 cm
|
Beam
#14 @ 375 cm
|
|
width
|
20.6
|
18.5
|
15.6
|
11.75
|
8.1
|
|
Center
to
|
15.5
|
16.0
|
17.0
|
18.0
|
20.0
|
|
Bottom
thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
17.5
|
18.0
|
19.0
|
20.0
|
22.0
|
2nd group
|
Position
in cm Vertical distance
|
Beam #1 @ 37.5 cm
|
Beam #2 @ 65 cm
|
Beam #3 @ 92.5 cm
|
Beam #4 @ 120 cm
|
Beam #5 @ 145.5cm
|
|
Center to
|
11.0
|
12.0
|
12.25
|
13.5
|
14.0
|
|
Bottom thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
13.0
|
14.0
|
14.25
|
15.5
|
16.0
|
|
Position
in cm Vertical distance
|
Beam #6 @ 168 cm
|
Midship @ 200 cm
|
Beam #7 @ 230 cm
|
Beam #8 @ 244 cm
|
Beam #9 @ 268 cm
|
|
Center to
|
14.5
|
14.0
|
14.0
|
14.0
|
14.0
|
|
Bottom thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
16.5
|
16.0
|
16.0
|
16.0
|
16.0
|
|
Position
in cm Vertical distance
|
Beam
#10 @ 292 cm
|
Beam
#11 @ 314 cm
|
Beam
#12 @ 335 cm
|
Beam
#13 @ 361 cm
|
Beam
#14 @ 375 cm
|
|
Center
to
|
13.5
|
13.0
|
13.0
|
12.0
|
11.5
|
|
Bottom
thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
15.5
|
15.0
|
15.0
|
14.0
|
13.5
|
Actually
the drawings should be consulted to see where the ribs leave off because the
2 cm bottom thickness is just the thickness of the ribs!
of the
3rd group
measured
on an angle from center to (2nd) chine
|
Position in cm
|
Beam #1 @ 37.5 cm
|
Beam #2 @ 65 cm
|
Beam #3 @ 92.5 cm
|
Beam #4 @ 120 cm
|
Beam #5 @ 145.5 cm
|
|
Center to
|
11
|
13.25
|
14
|
15.5
|
16.5
|
|
Bottom thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
13.0
|
15.25
|
16
|
17.5
|
18.5
|
|
Position
in cm
3rd
group
|
Beam #6 @ 168 cm
|
Midship @ 200 cm
|
Beam #7 @ 230 cm
|
Beam #8 @ 244 cm
|
Beam #9 @ 268 cm
|
|
Center to
|
17.5
|
18.0
|
18.0
|
18.25
|
17.25
|
|
Bottom thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
19.5
|
20.0
|
20.0
|
20.25
|
19.25
|
|
Position
in cm
3rd
group
|
Beam
#10 @ 292 cm
|
Beam
#11 @ 314 cm
|
Beam
#12 @ 335 cm
|
Beam
#13 @ 361 cm
|
Beam
#14 @ 375 cm
|
|
Center
to
|
16.75
|
15.75
|
14.75
|
13.0
|
13.0
|
|
Bottom
thickness
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
keel
|
18.25
|
17.25
|
16.75
|
15.0
|
15.0
|
Top and
bottom of gunwale to show canting.
Bottom of gunwale forms the 1st chine.
|
Position
in cm
4th
group
|
Beam #1 @ 37.5 cm
|
Beam #2 @ 65cm
|
Beam #3 @ 92.5 cm
|
Beam #4 @ 120 cm
|
Beam #5 @ 145.5cm
|
|
Gunwale top
|
7.75
|
12.0
|
16.0
|
19.5
|
21.8
|
|
Gunwale Bottom
|
7.75
|
9
|
13
|
16.75
|
19.37
|
|
Position
in cm
4th
group
|
Beam #6 @ 168 cm
|
Midship @ 200 cm
|
Beam #7 @ 230 cm
|
Beam #8 @ 244 cm
|
Beam #9 @ 268 cm
|
|
Center to
|
23.5
|
25.0
|
25.25
|
24.5
|
23.0
|
|
Bottom thickness
|
21.25
|
22.75
|
22.8
|
23.25
|
20.75
|
|
Position
in cm
4th
group
|
Beam
#10 @ 292 cm
|
Beam
#11 @ 314 cm
|
Beam
#12 @ 335 cm
|
Beam
#13 @ 361 cm
|
Beam
#14 @ 375 cm
|
|
Center
to
|
20.6
|
18.5
|
15.6
|
11.75
|
8.1
|
|
Bottom
thickness
|
18.5
|
15.75
|
12.8
|
8.0
|
5.2
|
Gunwales
8 cm high and 2 cm thick
|
