Rowing in the Wind using
the EZ-Rower with Sling System to Brace Into: The Time When Going Downwind Was
More Work Than Going Upwind. - Gail Ferris
www.nkhorizons.com/Forwardfacingrowing.html
On a February winter Sunday
afternoon I finally got a chance to row because the wind and the ice were not
too bad. I tentatively started out
wondering how all would go. I am not
all that accustomed to how a lightly built dory will handle in wind. The traditional dory has a lot of windage

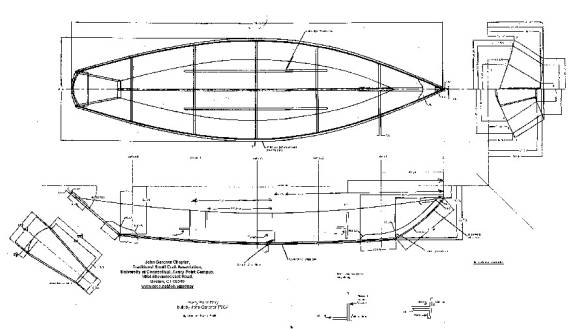

and this dory, the Avery Point Dory being 12.5 feet at the waterline might have
the most windage for its waterline length.
The wind was blowing at a generally steady blow from the northwest at about 15 knots.
http://homepage.mac.com/chauncyrucker1/PhotoAlbum6.html
http://www.tsca.net/johngardner/
I installed my EZ-Row forward
facing mechanism using the oarlock sockets.
Then I arranged my sling system for my seatback and foot brace by wrapping
its already measured loops around the T bolts that secured the front of the
rowing mechanism to the gunwales.
I was glad that I did not
have to make any adjustments because it was not the best day for bare hands.
It was a typical February
type of day with the temperature above freezing in the bright sun but the snow
on the ground was not melting. I took
advantage of the soft fluffy snow using it as a convenient slippery surface to
slide the dory over down to the water.
The tide was dropping so in anticipation I put my pool noodles in the
boat for the return trip. The dory is
light enough to roll up the beach using the pool noodles as rollers.
Alone I set off in the
sheltered area with the wind at my back figuring that I could easily enough
rescue myself in this protected area.
I got underway carefully and
wound around the corner of the docks in the lee of the wind. All was well.
Emerging from the shelter of
the lee I encountered a fifteen know wind against me but I had no problem
making progress because I was generating plenty of power in my stroke from the
leverage I have with my sling system around my back and feet as I sat on the
solid plank seat.
I had arranged the length of
the foot sling such that I could lean forward at the catch and bend my
knees. This is a stationary sliding
seat type of stroke. The stroke is a
typical sliding seat stroke only I am rocking on my buttocks instead of sliding
my body back and forth as I take a stroke.
I am able to bend my knees and then extend them because my heels
suspended in air just below the level of my seat and are off the floor. My sitting height, leg angle and foot height
are very similar to sliding seat.
As I start the stroke I rock
back on my buttocks and extend my legs fully in front of me.
Because I am able to do this
I have muscles in both my back and legs providing me with full leverage I
transfer into my stroke via my arms. I
row at a comfortable chest level with slight cross over of the oars.
During my row across the
harbor directly into the wind I was comfortable rowing and covered the distance
easily because of this leverage my sling system gave me.
I remembered the first time I
used this rowing system without the sling around my back and feet. Rowing on quiet water with even a mere 5
knots of wind became an arduous task I began to regret increasingly as I vainly
sought anything I could brace my feet against.
Even after I could somewhat brace my feet I could feel my buttocks
slipping back on the smooth plank seat.
I could feel that I had just
lost any gain in leverage I had made by bracing my feet.
That was not good and I grew
more and more miserable as my simple row progressed. All the fun and sense of accomplishment was diminishing as I
realized that I was performing the most inefficient rowing stroke
possible. I felt as though I was just
doing everything in mid air for nothing I was moving the oars but not
propelling the boat.
Rowing on flat water is not
very interesting I like to row in the wind to experiment with the boat as to
how the dory interacts with the air currents and enjoy the waves. A dory is an interesting shape it has a
cross section like a Dixie cup that is pointed on both ends. The shape also has high sides to further
embellish airfoil definition, in other words the dory is high out of the water
relative to its waterline length.
Rowing into the wind was straightforward. I was facing forward.
As I took a stroke at the catch I leaned forward and then I rocked back toward the stern. By rocking toward the stern during my stroke it allowed the bow to rise and at the catch let the bow settle down again. The weight distribution of my body during the stroke harmonized with the forward propulsion spurt.
I thought about the flat bottom of the dory.
I fantasized to myself, suppose I was able to row fast enough could I get the hull up on a plane. Probably that idea was not too realistic but then again the opportunity might be there under some other circumstances. Who knows!
I have always been interested
it the idea of hydrofoils going foiling anything to help the bow climb up onto
some foils such as facing forward during rowing would be just fine with
me. Ah fantasy, imagine foiling while
rowing, how neat!
I just need the foils and a
few other things.
Getting back to reality once
again.
I was in a relative lee on
the other side of the bay, Mystic heading south toward Noank. I found myself challenged as I tried rowing
broadside to the wind. During the gusts
I found that my dory had a serious weather helm. I had to really crank on the windward oar to prevent the dory
from heading into the wind.
I realized that returning
down wind is going to be even harder work than rowing against the wind, because
home was down wind.
Sure enough when I rowed down
wind I really had to exert myself to prevent my bow from heading into the
wind.
The complete lack of weight
in the stern a result of my sitting on the plank seat mid ship facing forward
with the weight of my feet and legs in front of me left very little skeg in the
water if any, during the catch when I was leaning forward.
Ah the humility of rowing an
unballasted dory alone came to mind.
Humility in the sense that I was having a direct learning experience
about the uncontrolled airfoil I was propelling. I could see that I was blowing sideways at an alarming rate. I realized that I was not going to cross to
the opposite exposed side on my way back with the wind blowing broadside at me.
I made my way along the lee shore
without too much trouble controlling my dory down as far as I thought my quest
for adventure dared take me considering that I had to make it back and that my
strength had to hold out.
Near South Cove in Noank I
turned around and the following wind did its tricks. I had to pull hard on the windward side to control the bow,
sometimes just rowing on the windward side.
Meanwhile the dory was rapidly skimming sideways toward the exposed
shore of Mason’s Island.
I felt foolish.
As was passing a very shallow
peninsula I noticed the outgoing tidal current and the lateral skim of my hull
was nearly holding me stationary. In
some alarm I applied more power and looked straight ahead. I powered my self past the peninsula putting
some rowing energy into my sling system.
I could feel the leverage this sling system was giving me.
The wind was blowing just
strong enough to lift the side of the dory and as I leaned toward the wind to
settle the hull I was glad that my simple slings were of flexible line padded
for my feet and back.
The last thing I wanted to do
was to let the wind flip the dory.
With my flexible slings I
could lean and counter lean as the wind gusted and diminished. I was glad I happened to have cooked up this
simple system rather than created some more rigid system and that I was sitting
on a plank seat so that I could slide my buttocks over to compensate for the
wind as need be.
As I found myself being hit
broadside by consistent 15 knots of wind I did slide my buttocks over toward
the wind allowing me to use my body as ballast.
I stared at my objectives in
front of me and decided that I would take the chicken route, in other words I
would row in the lee up as far as I could and then head down wind for
home. I did not want to risk making a
direct run home because I would be exposed to the full power of this broadside
wind for a long distance.
I knew I would have to work
hard going down wind but as long as I paid attention to not letting the dory
slew around upwind I would not have to worry about being blown over broadside.
Without my simple line slings
this rowing would have not been possible because I would have not been able to
control the helm of the dory.
I could feel every little
gust as I paddled broadside to the wind in the lee because of even the
slightest difference in land height.
Although I could see the differences in the wind riffles on the water I
could not anticipate how the resulting wind would affect the dory.
Had I been paddling my kayak
the latitude for sensitivity to the wind is much less. I would have been able to easily just lean
toward the wind and use a windward brace instantly as needed. In the dory this sensitivity to the wind was
much greater the unballasted hull was extremely tender in the wind.
The corrective strokes had a
very temporary effect on the overall direction of the hull. I was glad I had not tried the windward
shore because I think I might have fetched up in rocky shallows.
November 9th 2004
I devised a system utilizing
the EZ-Row for an Avery Point dory which allows me to row well braced utilizing
both the power from my arms and upper body and legs in a system similar to the
technique used with the Frontrower and as if I were doing sliding seat rowing.
http://www.frontrower.com/index.htm

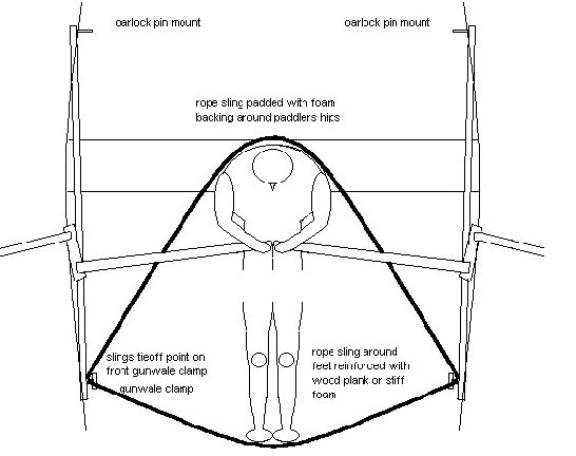

To brace my lower back
against I attached a padded U shaped length of padded line around my back
attached to the EZ-Rower gunwale bracket attachment to the dory gunwale forward
of me at a position just forward of my knees.
I am seated on the dory seat
facing forward.
For my feet to brace against U shaped length of line is attached to the EZ-Rower gunwale bracket running around my feet with my feet just off the bottom of the boat.
Rowing technique allows me to
lean forward and retract my legs at the catch.
The pull on the stroke is executed in stages similar to sliding
seat. First as I begin to pull on the
looms I begin to extend my legs, then follow through by lean back complete the
pull by using my back and arms in concert with the extension of my legs.
Throughout the stroke my feet
are off the floor.
My rope slings around my back
and feet allow me to row while firmly anchored front to back. I found that I was comfortably able to power
an Avery Point dory in 15 to 20 knots of head wind and able to run down wind
under complete control.
I had in mind from discussing
rowing with Doug Martin that an orthopedic physician had proven that a rower’s
pelvis must be solidly braced on a solid seat.
The design of the original
Oarmaster has the defect of large holes in the wood seat beneath the wings of
the rower’s pelvis. The seat should be
of solid wood without these holes. The
plank seat on the dory I was rowing was best pelvic support for rowing.
|
|
|
|
